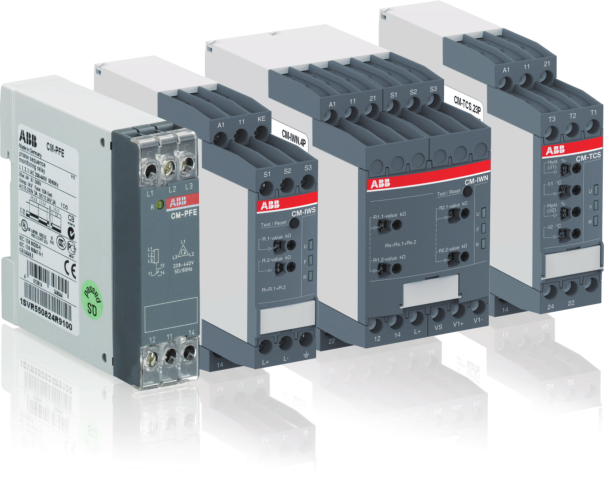

电子测量和监视继电器
产品介绍
|
型号 |
供电电压 / 监视功能 |
监视范围 |
输出触点 |
响应 |
|
单相电流监视器 |
|
|
|
|
|
CM-SRS.11S |
24-240V AC/DC |
3mA-1A AC/DC |
1c/o |
- |
|
220-240V AC |
||||
|
CM-SRS.12S |
24-240V AC/DC |
0.3-15A AC/DC |
1c/o |
- |
|
220-240V AC |
||||
|
CM-SRS.21S |
24-240V AC/DC |
3mA-1A AC/DC |
2c/o |
- |
|
220-240V AC |
0.3-15A AC/DC |
2c/o |
- |
|
|
CM-SRS.22S |
24-240V AC/DC |
0.3-15A AC/DC |
2c/o |
- |
|
220-240V AC |
0.3-15A AC/DC |
2c/o |
||
|
CM-SRS.M1S |
24-240V AC/DC |
3mA-1A AC/DC |
2c/o |
0.01-30s |
|
CM-SRS.M2S |
24-240V AC/DC |
0.3-15A AC/DC |
||
|
CM-SFS.21S |
24-240V AC/DC |
3mA-1A AC/DC |
1x2c/o; 2x1c/o 0, |
0.01-30s |
|
CM-SFS.22S |
24-240V AC/DC |
0.3-15A AC/DC |
||
|
单相电压监视器 |
|
|
|
|
|
CM-ESS.1S |
24-240V AC/DC |
3-600V AC/DC |
1c/o |
- |
|
220-240V AC |
||||
|
CM-ESS.2S |
24-240V AC/DC |
2c/o |
0.01-30s |
|
|
220-240V AC |
||||
|
CM-ESS.MS |
24-240V AC/DC |
2c/o |
0.01-30s |
|
|
CM-EFS.2S |
24-240V AC/DC |
1x2c/o; 2x1c/o |
||
|
三相监视器 |
|
|
|
|
|
CM-PBE |
缺相监视，带中性线 |
220-240V AC |
1no |
- |
|
缺相监视，不带中性线 |
3 x 380-440V AC |
|||
|
CM-PVE |
电压监视，带中性线 |
185-265V AC |
1no |
- |
|
电压监视，不带中性线 |
3 x 320-460V AC |
|||
|
CM-PFE |
相序监视 |
3 x 208-440V AC |
1c/o |
- |
|
CM-PFS.S |
3 x 200-500V AC |
2c/o |
- |
|
|
CM-PSS.31S |
电压监视， 固定阈值，不带中性线，相序监视功能可选 |
3 x 380V AC, 50/60Hz |
1x2c/o |
0.01-30s |
|
CM-PSS.41S |
3 x 400V AC, 50/60Hz |
|||
|
CM-PVS.31S |
3 x 160-300V AC, 50/60Hz |
|||
|
CM-PVS.41S |
3 x 300-500V AC, 50/60Hz |
|||
|
CM-PVS.81S |
阈值可调，不带中性线，相序监视 |
3x200-400VAC, 50/60Hz |
1x2c/o |
0.01-30s |
|
CM-PAS.31S |
不平衡监视，阈值可调，不带中性线 |
3 x 160-300V AC, 50/60Hz |
1x2c/o |
0.01-30s |
|
CM-PAS.41S |
3 x 300-500V AC, 50/60Hz |
|||
|
CM-MPS.11S |
多功能监视，带中性线，可用于单相，相序监视功能可选 |
3 x 90-170V AC, 50/60Hz |
1x2c/o |
0.01-30s |
|
CM-MPS.21S |
3 x 180-280V AC, 50/60Hz |
|||
|
CM-MPS.31S |
三相多功能监视，不带中性线，相序监视功能可选 |
3 x 160-300V AC, 50/60Hz |
1x2c/o |
0.01-30s |
|
CM-MPS.41S |
3 x 300-500V AC, 50/60Hz |
|||
|
CM-MPS.23S |
多功能监视，带中性线,可用于单相，相序自动校正功能可选 |
3 x 180-280V AC,50/60/400Hz |
1x2c/o，2x1c/o |
0.01-30s |
|
CM-MPS.43S |
多功能监视，不带中性线，相序自动校正功能可选 |
3 x 300-500V AC,50/60/400Hz |
||
|
CM-MPN.52S |
多功能监视，不带中性线，相序自动校正功能可选 |
3 x 350-580V AC, 50/60Hz |
1x2c/o，2x1c/o |
0.01-30s |
|
CM-MPN.62S |
3 x 450-720V AC, 50/60Hz |
|||
|
CM-MPN.72S |
3 x 530-820V AC, 50/60Hz |
|||
|
PT100 温度监视 继电器 |
||||
|
型号 |
供电电压 |
温度监视范围 |
输出触点 |
|
|
CM-TCS.11S |
24-240V AC/DC |
-50...+50 ˚C |
1x2c/o, 2x1c/o |
|
|
CM-TCS.12S |
0...+100 ˚C |
|||
|
CM-TCS.13S |
0...+200 ˚C |
|||
|
CM-TCS.21S |
24V AC/DC |
-50...+50 ˚C |
1x2c/o, 2x1c/o |
|
|
CM-TCS.22S |
0...+100 ˚C |
|||
|
CM-TCS.23S |
0...+200 ˚C |
|||
|
PTC 热敏电阻 电机保护继电器 |
||||
|
型号 |
供电电压 |
输出触点 |
功能 |
|
|
CM-MSE |
220-240 VAC |
1no |
自动复位 |
|
|
CM-MSE |
24VAC |
|||
|
CM-MSS.11S |
24-240 V AC/DC |
n/c, 1 n/o |
自动复位，断线检测，故障存储，ATEX认证 |
|
|
CM-MSS.12S |
24 V AC/DC |
1 c/o |
自动复位 |
|
|
CM-MSS.13S |
110-130 V AC, |
|||
|
220-240 V AC |
||||
|
CM-MSS.21S |
24-240 V AC/DC |
1n/c, 1 n/o |
自动复位，断线检测，故障存储，ATEX认证 |
|
|
CM-MSS.22S |
24 V AC/DC |
2 c/o |
自动、手动、远程复位 |
|
|
CM-MSS.23S |
110-130 V AC, |
|||
|
220-240 V AC |
||||
|
CM-MSS.31S |
24-240 V AC/DC |
1n/c, 1 n/o |
自动、手动、远程复位，断线、短路检测，故障存储，ATEX认证 |
|
|
CM-MSS.32S |
24 V AC/DC |
2 c/o |
||
|
CM-MSS.33S |
110-130 V AC, |
|||
|
220-240 V AC |
||||
|
CM-MSS.41S |
24-240 V AC/DC |
|||
|
CM-MSS.51S |
24-240 V AC/DC |
2x1 c/o, 1x2 c/o |
||
|
不接地系统 绝缘监视器 |
||||
|
型号 |
供电电压 |
温度监视范围 |
输出触点 |
最大检测电压 |
|
CM-IWS.1S |
24-240VAC/DC |
1-100Kohm |
1c/o |
AC或DC系统，最大检 |
|
CM-IWS.2S |
纯AC系统，最大检测相间电压400Vac，最大对地泄漏电容10uF |
|||
|
CM-IWN.1S |
1-100Kohm,2-200Kohm |
1x2c/o, 2x1c/o |
AC或DC系统，最大检测相间电压400Vac 或600Vdc，最大对地泄漏电容20uF |
|
|
CM-IVN.S |
CM-IWN.1 |
|
最大检测相间电压690V AC或1000V DC |
|
|
液位监视器 |
||||
|
CM-ENE MIN |
220-240VAC |
液面位置 |
1c/o |
|
|
CM-ENE MAX |
|
|||
|
CM-ENS.11S |
24-240VAC/DC |
1c/o |
敏感度调节5-100KΩ |
|
|
CM-ENS.21S |
敏感度调节 |
|||
|
CM-ENS.31S |
2 c/o |
敏感度调节 |
||
|
CM-ENS.13S |
10-130 / |
1c/o |
敏感度调节5-100KΩ |
|
|
CM-ENS.23S |
敏感度调节 |
