中间接口继电器
产品介绍

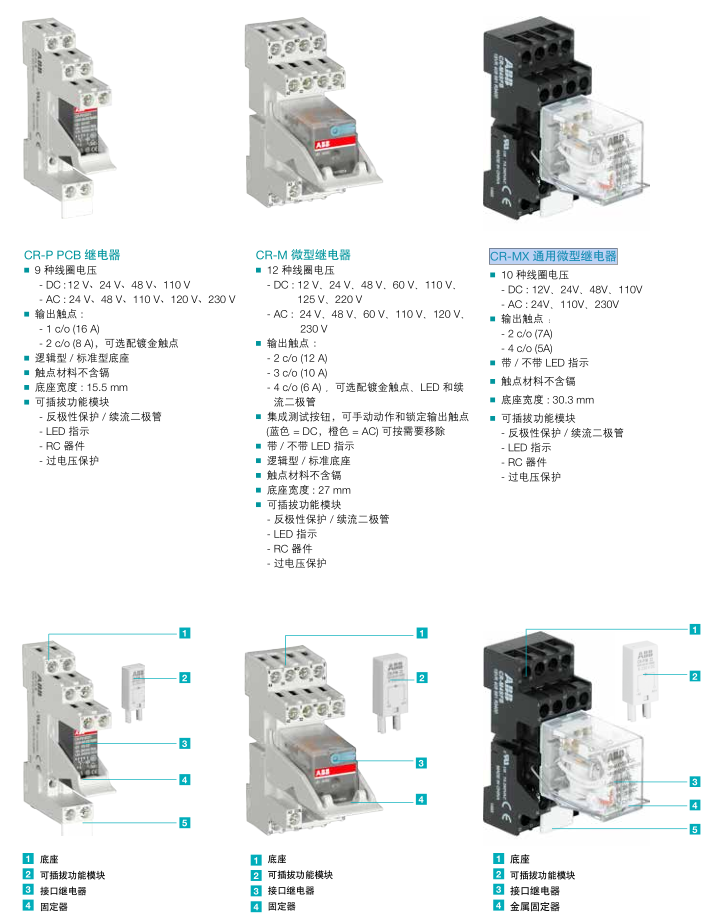

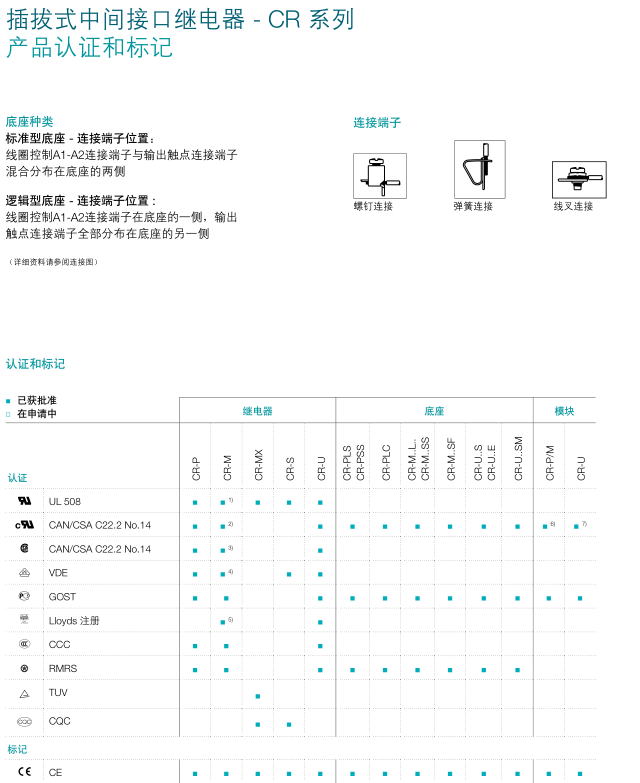

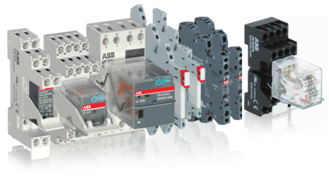

插拔式中间接口继电器 - CR 系列
|
型号 |
线圈电压 |
输出 C/O 触点数 |
状态指示 LED |
|
常用继电器一体化订货号（最小订货量10套） |
|||
|
CR-M 24V DC 2c/o with LED |
24V DC |
2 |
√ |
|
CR-M 230V AC 2c/o with LED |
230V AC |
2 |
√ |
|
CR-M 24V DC 4c/o with LED |
24V DC |
4 |
√ |
|
CR-M 230V AC 4c/o with LED |
230V AC |
4 |
√ |
|
CR-P024DC1 with RED LED |
24V DC |
1 |
√ |
|
CR-P230AC1 with RED LED |
230V AC |
1 |
√ |
|
CR-P024DC2 with RED LED |
24V DC |
2 |
√ |
|
CR-P230AC2 with RED LED |
230V AC |
2 |
√ |
|
继电器CR-MX（最小订货量10只） |
|||
|
CR-MX012DC2L |
12VDC |
2 |
√ |
|
CR-MX024DC2L |
24VDC |
2 |
√ |
|
CR-MX048DC2L |
48VDC |
2 |
√ |
|
CR-MX110DC2L |
110VDC |
2 |
√ |
|
CR-MX024AC2L |
24VAC |
2 |
√ |
|
CR-MX110AC2L |
110VAC |
2 |
√ |
|
CR-MX230AC2L |
230VAC |
2 |
√ |
|
CR-MX012DC4L |
12VDC |
4 |
√ |
|
CR-MX024DC4L |
24VDC |
4 |
√ |
|
CR-MX048DC4L |
48VDC |
4 |
√ |
|
CR-MX110DC4L |
110VDC |
4 |
√ |
|
CR-MX024AC4L |
24VAC |
4 |
√ |
|
CR-MX110AC4L |
110VAC |
4 |
√ |
|
CR-MX230AC4L |
230VAC |
4 |
√ |
|
CR-MX012DC2 |
12VDC |
2 |
|
|
CR-MX024DC2 |
24VDC |
2 |
|
|
CR-MX048DC2 |
48VDC |
2 |
|
|
CR-MX110DC2 |
110VDC |
2 |
|
|
CR-MX024AC2 |
24VAC |
2 |
|
|
CR-MX110AC2 |
110VAC |
2 |
|
|
CR-MX230AC2 |
230VAC |
2 |
|
|
CR-MX012DC4 |
12VDC |
4 |
|
|
CR-MX024DC4 |
24VDC |
4 |
|
|
CR-MX048DC4 |
48VDC |
4 |
|
|
CR-MX110DC4 |
110VDC |
4 |
|
|
CR-MX024AC4 |
24VAC |
4 |
|
|
CR-MX110AC4 |
110VAC |
4 |
|
|
CR-MX230AC4 |
230VAC |
4 |
|
|
继电器 CR-P（最小订货量10只） |
|
|
|
|
CR-P024DC1 |
24DC |
1 |
|
|
CR-P230AC1 |
230AC |
|
|
|
CR-P110AC1 |
110VAC |
|
|
|
CR-P110DC1 |
110VDC |
|
|
|
CR-P024AC2 |
24VAC |
2 |
|
|
CR-P024DC2 |
24DC |
|
|
|
CR-P048DC2 |
48VDC |
|
|
|
CR-P230AC2 |
230AC |
|
|
|
CR-P110AC2 |
110VAC |
|
|
|
CR-P110DC2 |
110VDC |
|
|
|
光电耦合继电器CR-P（最小订货量10只） |
|
|
|
|
CR-P024MOS1 |
10-32 V DC |
场效应晶体管输出 5 A - 35 V DC |
|
|
CR-P024TRI1 |
10-32 V DC |
晶体管输出 3 A - 275 V AC |
|
|
继电器CR-M（最小订货量10只） |
|
|
|
|
CR-M024AC2 |
24AC |
2 |
|
|
CR-M024AC2L |
√ |
||
|
CR-M024DC2 |
24DC |
2 |
|
|
CR-M024DC2L |
√ |
||
|
CR-M230AC2 |
230AC |
2 |
|
|
CR-M230AC2L |
√ |
||
|
CR-M110AC2 |
110AC |
2 |
|
|
CR-M110AC2L |
√ |
||
|
CR-M110DC2 |
110DC |
2 |
|
|
CR-M110DC2L |
√ |
||
|
CR-M220DC2 |
220DC |
2 |
|
|
CR-M220DC2L |
√ |
||
|
CR-M024AC3 |
24AC |
3 |
|
|
CR-M024AC3L |
√ |
||
|
CR-M024DC3 |
24DC |
3 |
|
|
CR-M024DC3L |
√ |
||
|
CR-M230AC3 |
230AC |
3 |
|
|
CR-M230AC3L |
√ |
||
|
CR-M110AC3 |
110AC |
3 |
|
|
CR-M110AC3L |
√ |
||
|
CR-M110DC3 |
110DC |
3 |
|
|
CR-M110DC3L |
√ |
||
|
CR-M220DC3 |
220DC |
3 |
|
|
CR-M220DC3L |
√ |
||
|
CR-M024AC4 |
24AC |
4 |
|
|
CR-M024AC4L |
√ |
||
|
CR-M024DC4 |
24DC |
4 |
|
|
CR-M024DC4L |
√ |
||
|
CR-M230AC4 |
230AC |
4 |
|
|
CR-M230AC4L |
√ |
||
|
CR-M110AC4 |
110AC |
4 |
|
|
CR-M110AC4L |
√ |
||
|
CR-M110DC4 |
110DC |
4 |
|
|
CR-M110DC4L |
√ |
||
|
CR-M220DC4 |
220DC |
4 |
|
|
CR-M220DC4L |
√ |
||
|
继电器CR-U（最小订货量10只） |
|
|
|
|
CR-U024AC2 |
24AC |
2 |
|
|
CR-U024AC2L |
√ |
||
|
CR-U024DC2 |
24DC |
2 |
|
|
CR-U024DC2L |
√ |
||
|
CR-U230AC2 |
230AC |
2 |
|
|
CR-U230AC2L |
√ |
||
|
CR-U110AC2 |
110AC |
2 |
|
|
CR-U110AC2L |
√ |
||
|
CR-U110DC2 |
110DC |
2 |
|
|
CR-U110DC2L |
√ |
||
|
CR-U220DC2 |
220DC |
2 |
|
|
CR-U220DC2L |
√ |
||
|
CR-U024AC3 |
24AC |
3 |
|
|
CR-U024AC3L |
√ |
||
|
CR-U024DC3 |
24DC |
3 |
|
|
CR-U024DC3L |
√ |
||
|
CR-U230AC3 |
230AC |
3 |
|
|
CR-U230AC3L |
√ |
||
|
CR-U110AC3 |
110AC |
3 |
|
|
CR-U110AC3L |
√ |
||
|
CR-U110DC3 |
110DC |
3 |
|
|
CR-U110DC3L |
√ |
||
|
CR-U220DC3 |
220DC |
3 |
|
|
CR-U220DC3L |
√ |
||
|
|
|
|
|
|
继电器附件 - 底座（最小订货量10只） |
|||
|
CR-PLS |
逻辑型底座 |
适用于 CR-P 型 |
|
|
CR-PSS |
标准底座 |
|
|
|
CR-M2SFB |
标准底座 2c/o |
适用于CR-MX |
|
|
CR-M4SFB |
标准底座，2/4 c/o |
适用于CR-MX |
|
|
CR-M2SFBN |
窄型底座，2c/o |
适用于CR-MX，不可插拔功能模块 |
|
|
CR-M4SFBN |
标准宽度底座，2/4 c/o |
适用于CR-MX，不可插拔功能模块 |
|
|
CR-M2SS |
标准型底座，2c/o |
适用于 CR-M 型 |
|
|
CR-M2LS |
标准型底座，2c/o |
|
|
|
CR-M3SS |
标准型底座，3c/o |
|
|
|
CR-M3LS |
标准型底座，3c/o |
|
|
|
CR-M4SS |
标准型底座，2/4 c/o |
|
|
|
CR-M4LS |
逻辑型底座，4c/o |
|
|
|
CR-U3S |
标准型底座，3c/o |
适用于 CR-U 型 |
|
|
CR-U3E |
经济型底座，3c/o |
|
|
|
CR-U2S |
标准型底座，2c/o |
|
|
|
更多附件下载详细样本或欢迎来电咨询 |
|||
|
|
|
|
|
|
可插拔式超薄继电器 - CR - S |
|
|
|
|
型号 |
线圈电压 |
端子接线方式 |
|
|
可插拔式超薄继电器，1c/o(SPDT)标准触点：250 V, 6 A（最小订货量10只） |
|||
|
CR-S005VDC1R |
5VDC |
|
|
|
CR-S012VDC1R |
12VDC |
|
|
|
CR-S024VDC1R |
24VDC |
|
|
|
CR-S048VDC1R |
48VDC |
|
|
|
CR-S060VDC1R |
60VDC |
|
|
|
可插拔式超薄继电器，1c/o(SPDT)镀金触点：12 V, 250 mA (3W) （最小订货量10只） |
|||
|
CR-S005VDC1RG |
5VDC |
|
|
|
CR-S012VDC1RG |
12VDC |
|
|
|
CR-S024VDC1RG |
24VDC |
|
|
|
CR-S048VDC1RG |
48VDC |
|
|
|
CR-S060VDC1RG |
60VDC |
|
|
|
可插拔式超薄光电耦合继电器（最小订货量10只） |
|||
|
CR-S024VDC1TRA |
24VDC |
晶体管输出 100 mA, 48 V DC |
|
|
CR-S024VDC1MOS |
24VDC |
场效应晶体管输出 2 A, 24 V DC |
|
|
CR-S024VDC1TRI |
24VDC |
可控硅晶体管输出 2 A, 240 V AC |
|
|
超薄继电器(继电器+底座)，1c/o(SPDT)标准触点：250 V, 6 A （最小订货量10只） |
|||
|
CR-S024VADC1CRS |
24V AC/DC |
螺钉 |
|
|
CR-S024VADC1CRZ |
24V AC/DC |
弹簧 |
|
|
CR-S110VADC1CRS |
110V AC/DC |
螺钉 |
|
|
CR-S110VADC1CRZ |
110V AC/DC |
弹簧 |
|
|
CR-S230VADC1CRS |
230V AC/D |
螺钉 |
|
|
CR-S230VADC1CRZ |
230V AC/D |
弹簧 |
|
|
超薄继电器(继电器+底座)，1c/o(SPDT)镀金触点：12 V, 250 mA (3W) （最小订货量10只） |
|||
|
CR-S024VADC1CRGS |
24V AC/DC |
螺钉 |
|
|
CR-S024VADC1CRGZ |
24V AC/DC |
弹簧 |
|
|
CR-S110VADC1CRGS |
110V AC/DC |
螺钉 |
|
|
CR-S110VADC1CRGZ |
110V AC/DC |
弹簧 |
|
|
CR-S230VADC1CRGS |
230V AC/D |
螺钉 |
|
|
CR-S230VADC1CRGZ |
230V AC/D |
弹簧 |
|
|
型号 |
线圈电压 |
端子接线方式 |
|
接口继电器R600（最小订货量10只） |
|
|
|
RB111-24VUC |
24 VAC/DC |
螺钉 |
|
RB111-230VUC |
230VAC/DC |
螺钉 |
|
RBR111-24VUC |
24 VAC/DC |
弹簧 |
|
RB121P-5VDC |
5 V DC |
螺钉 |
|
RB121P-12VDC |
12 V DC |
螺钉 |
|
RB121-24VDC |
24 V DC |
螺钉 |
|
RB121-24VUC |
24 VAC/DC |
螺钉 |
|
RB121-230VUC |
230VAC/DC |
螺钉 |
|
RBR121P-5VDC |
5 V DC |
弹簧 |
|
RBR121P-12VDC |
12 V DC |
弹簧 |
|
RBR121-24VUC |
24 VAC/DC |
弹簧 |
|
RBR121-230VUC |
230VAC/DC |
弹簧 |
|
RB121G-24VUC |
24 VAC/DC |
螺钉 |
|
RB121G-230VUC |
230VAC/DC |
螺钉 |
|
RB122G-24VUC |
24 VAC/DC |
螺钉 |
|
RB122G-230VUC |
230VAC/DC |
螺钉 |
|
RBR122G-24VUC |
24 VAC/DC |
弹簧 |
|
RBR122G-230VUC |
230VAC/DC |
弹簧 |
|
光电耦合继电器 - R600（最小订货量10只） |
|
|
|
型号 |
线圈电压 |
端子接线方式 |
|
OBIC0100-5-12VDC |
5-12VDC |
螺钉 |
|
OBIC0100-24VDC |
24VDC |
螺钉 |
|
OBIC0100-115-230 |
115-230VAC/DC |
螺钉 |
|
OBRIC0100-5-12VDC |
5-12VDC |
弹簧 |
|
OBRIC0100-24VDC |
24VDC |
弹簧 |
|
OBRIC0100-48-60VUC |
48-60VAC/DC |
弹簧 |
|
OBRIC0100-115-230 |
115-230VAC/DC |
弹簧 |
|
OBOC2000-5-12VDC |
5-12VDC |
螺钉 |
|
OBOC2000-24VUC |
24VDC |
螺钉 |
|
OBOC2000-48-60VUC |
48-60VAC/DC |
螺钉 |
|
OBOC2000-115VUC |
115V AC/DC |
螺钉 |
|
OBOC2000-230VUC |
230VAC/DC |
螺钉 |
|
OBROC2000-5-12VDC |
5-12VDC |
弹簧 |
|
OBROC2000-24VDC |
24VDC |
弹簧 |
|
OBROC2000-24VUC |
24VDC |
弹簧 |
|
OBROC2000-48-60VUC |
48-60VAC/DC |
弹簧 |
|
OBROC2000-115VUC |
115V AC/DC |
弹簧 |
|
OBROC2000-230VUC |
230VAC/DC |
弹簧 |
